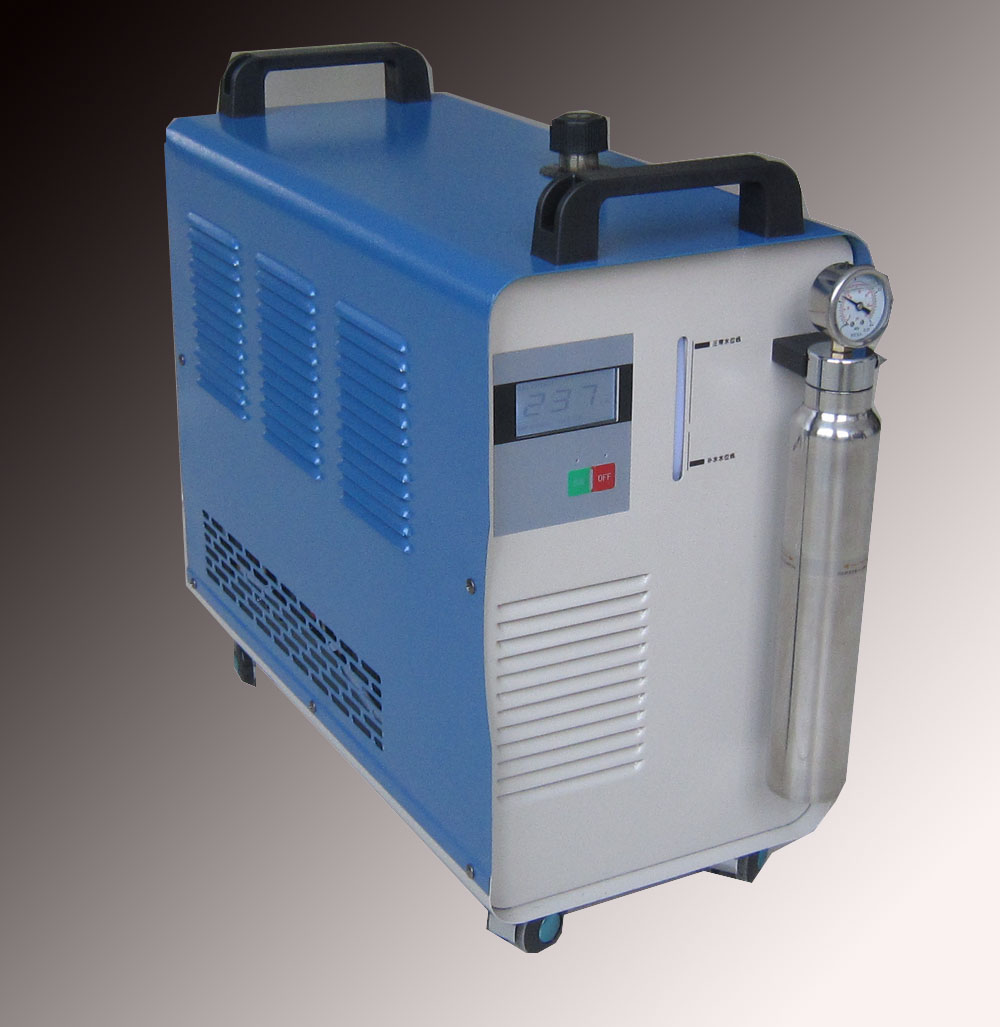

HOG-100 to HOG-600
Generator Introduction:
Water is H2O, under some circumstances, if electrolysis water, it could give
out H2 and O2. Hydrogen is a quite good fuel material, in normal uses, oxygen
helps hydrogen to burn into water again. Whole process is quite clean,
no pollution.
Oxy-hydrogen generator just use above principle, through electrolysis water
to produce H2 and O2. Main parts have: electrolysis cell, power system,
gas/water separator, cooling system, safety system, gas cleaning system,
electric control systems etc. And electrolysis cell is the most important part.
Our electrolysis cell is integration formed, which guarantee no liquid leakage.
Promise to use 10 years on average.
New machine development:
1. Add stainless steel extra water tank 1000ml--2000ml for each machine. Let machine water last longer
time.
2. LCD digital display: flow rate and each cell working
current.
Technology Parameter
Model No |
HOG-100 |
HOG-200 |
HOG-300 |
HOG-400 |
HOG-600 |
Gas output flow (L/hr) |
100 |
200 |
300 |
400 |
600 |
Gas output pressure |
0.1--0.2MPa | ||||
Gas burning Temp |
Around 2800 0C | ||||
Input voltage |
220V±15%, 110V±15% 50--60HZ | ||||
Water requirement |
Pure water or distilled water | ||||
Electrolysis cell number |
1pcs |
2pcs |
3pcs |
4pcs |
6pcs |
cell capacity(ml) |
1200 |
2400 |
3600 |
4800 |
9800 |
Power Consumption |
<400 |
<600 |
<1000 |
<1400 |
<2000 |
Each Cell Current |
12--14A(DC) | ||||
Water Adding |
By manual | ||||
Extra water tank capacity(ml) |
1400 |
1500 |
1800 |
2000 |
3000 |
Water consumption ( ml/Hour ) |
1200 |
2500 |
3600 |
4800 |
7200 |
Equipment size (cm) |
40*30* 53 |
50*30* 53 |
65*30* 53 |
76-30* 53 |
95*30* 53 |
Weight (kgs) |
12 |
15 |
20 |
28 |
48 |
1. High working efficiency:
Our oxyhydrogen generator use high technology insulation '
electrolysis cell and low temperature to rise pressure technology,
let flame is powerful and stable, safety and save electricity.
Gas is produced on demand no need storage, and hydrogen density
is light weighted than air, even if leakage, will not assemble,
will eliminate into air quickly, so will have no dangerous.
2. Environment Protection:
Our machine produce hydrogen and oxygen, after burning, will
becomes water steam, will not have carbon or black smoke, not have
CO etc harmful gases. No pollution, no harm, zero gas release,
complicate meet green environment requirement.
3. Economic
While machine reach setting figure, will automatically stop working
to save electricity. Use high effective insulation electrolysis
cell, only use water and little power.
4. High technology high precision
Hydrogen and oxygen burning temperature could reach 3000
centigrade, after lower temperature and rise pressure,
temperature could reach to 2000 centigrade( according to needs), could utmost protect welding piecework.
5. Easy use
Take small space, have water and electricity could work. Produced
gas odorless and non-toxic, even you are first time use, will be easy to operate.
Flame could be adjust according to customer needs, smallest flame
could be like needle.
6. Very Safety
Our oxyhydrogen generator have five systems to guarantee safety.
1) Anti backfire valve
2) Anti backfire torch
3) Pressure automatically controller ( reach the setting pressure
will stop working)
4) Anti back buffer
5) Pressure release auto valve
6) Electric and water system are complicate separated
7) Pipes and connection are stainless steel for sealing,
to guarantee no gases leakage.
Applications:
It can be used in welding metal or alloy; soldering denture or
maintaining dental equipment; soldering metal wires, especially
enamelled wires in motors; mending and soldering ey-glass frame; fusing LED wafers; making and mending gold jewelry,
platinum jewelry and other jewelries; processing quartz glass;
sealing small quartz glass bottles; processing accessories and
decorations; polishing acrylic or organic glass sheets, letters
and so on.
