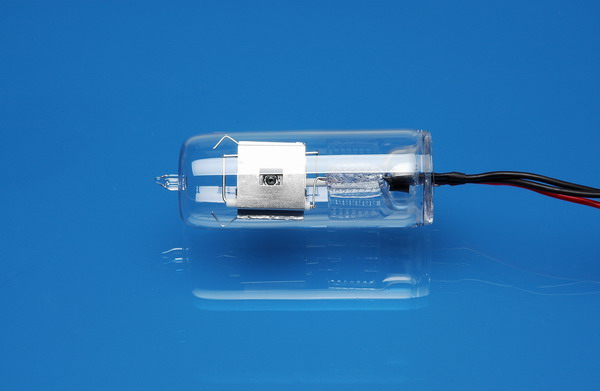

D2 Lamp

Deuterium lamps
could submit 160nm to 400nm continuous ultraviolet spectrum.

Are the ideal light source to violet spectrophotometers,
liquid chromatography, violet energy test and atomic absorption

spectrum background light source.

Model	Lamp Model	Light window Material	Spectrum distribution (nm)	Trigger Voltage DC V	Lamp Rating Voltage DC (V)	Lamp Current DC (mA)	Average Life (Hr)	Filament Parameter
								Warm Up State			Working State
								Voltage (V)	Current (A)	Time (S)	Voltage (V）	Current (A)
DD2.5	Common	quartz	160~400	350	80	300	800	2.5	4	10-60	0-1	0-1.8
DD2.5Z	Common with seat	quartz	160~400	350	80	300	1000	2.5	4	10-60	0-1	0-1.8
DD2.5T	protruding window	quartz	160~400	350	80	300	1000	2.5	4	10-60	0-1	0-1.8
DD2.5TZ	protruding window with seat	quartz	160~400	350	80	300	1000	2.5	4	10-60	0-1	0-1.8
DD2.5TCZ	Protruding window with seat and perforation	quartz	160~400	350	80	300	1000	2.5	4	10-60	0-1	0-1.8
DD10	Common	quartz	160~400	350	80	300	800	10	0.8	10-60	0-1	0-0.3
DD10Z	common with seat	quartz	160~401	350	80	300	1000	10	0.8	10-60	0-1	0-0.3
DD10T	protruding window	quartz	160~400	350	80	300	1000	10	0.8	10-60	0-1	0-0.3
DD10TZ	protruding window with seat	quartz	160~400	350	80	300	1000	10	0.8	10-60	0-1	0-0.3
